January 16th 2023

PCIe 5.0 will soon be used in home computers with the 12th-generation Core.

tAt the Architecture Day event that has just ended, Intel disclosed a lot of information about ARC discrete graphics card and Alder Lake processors. PCIe 5.0 SSD bulk will soon be used in home computers with the 12th-generation Core. Is buying a PCIe 4.0 solid-state drive now too late?

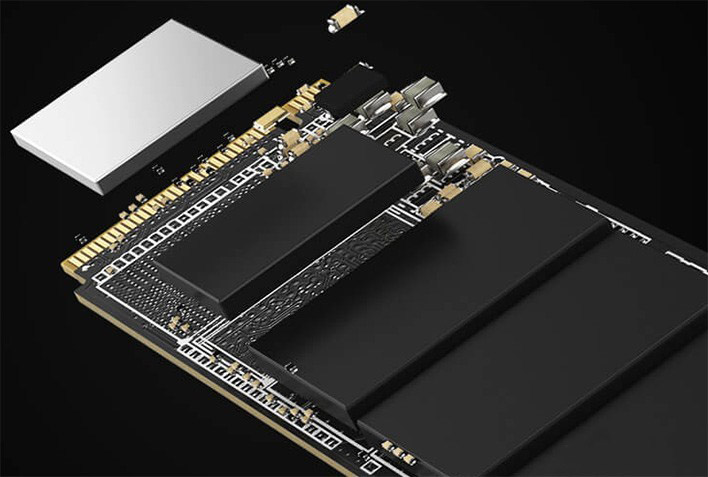

PCIe 5.0 will soon be used in home computers

How is PCle 4.0 SSD performance?

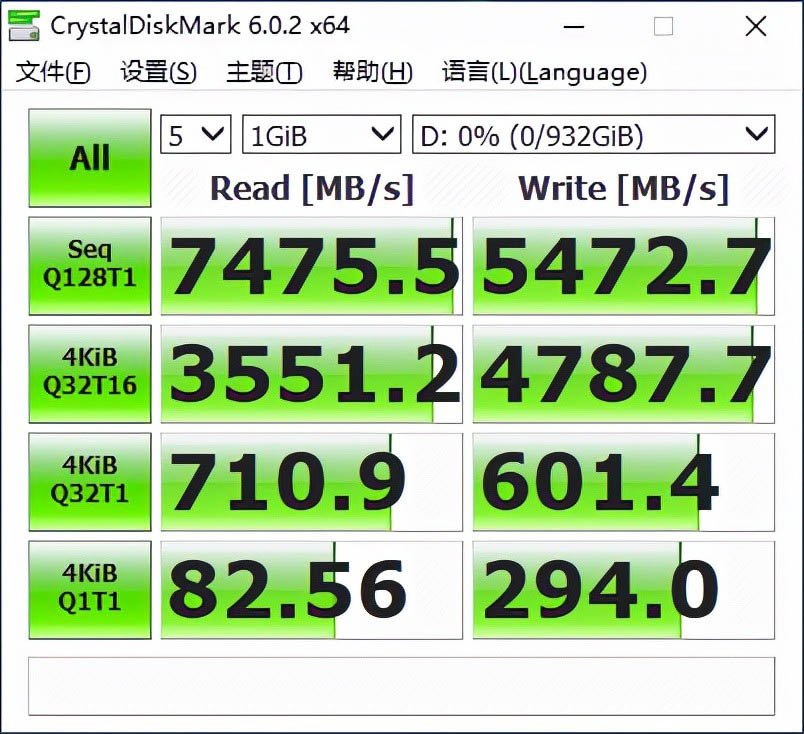

In fact, PCIe 4.0 SSDs have only become mature recently. From the first generation Phison PS5016 main control solution with 5000MB/s reading speed, to the second generation, whose reading speed generally reaches 7000MB/s. To the recent Innogrit IG5236 and Phison PS5018 solutions, they are equipping with 176-layer Micron flash memory. Furthermore, their reading speed finally reaches PCIe 4.0 x4 interface’s upper limit of the practical bandwidth – 7400MB/s. The picture below is the actual speed test of Asgart AN4.

Phison PS5016 control solution speed

Can we use PCle 5.0 SSD bulk now?

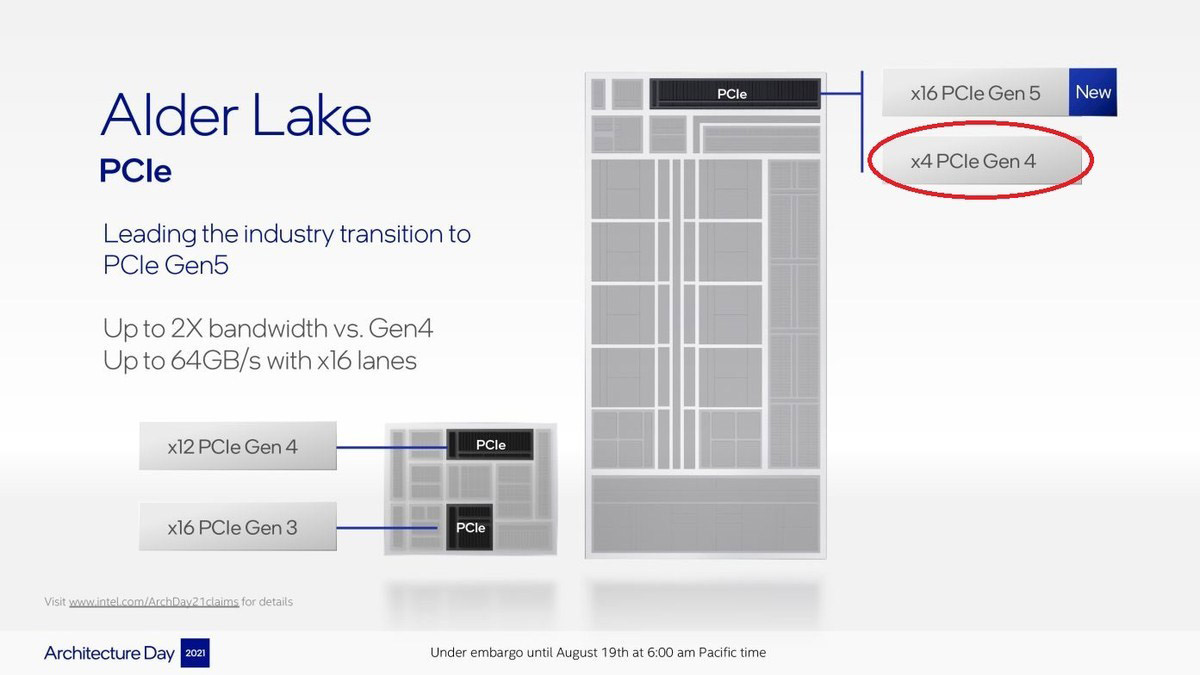

On the other hand, the PcIe 5.0 SSD bulk used in Intel’s 12th-generation Core is very primitive. According to the pictures displaying on the architecture day, the Alder Lake processor can only provide 16 PCIe 5.0 channels. Meanwhile the M.2 slot for solid-state drives only, still only can use PCIe 4.0 x4.

PCIe 5.0 solid-state drive

Although the mainboard can split these 16 PCIe 5.0 channels to power PCIe 5.0 solid-state drive, such  plan is obviously stupid. At present, graphics cards did not have bandwidth pressure under the PCIe 4.0 x16 interface, so it may not be upgraded to PCIe 5.0 x16 soon. If the graphics card is not changing to PCIe 5.0, they will have to run on PCIe 4.0 X8 after splitting the CPU channel, which will affect the performance of high-end gaming graphics cards. If I may ask, how many gamers are willing to sacrifice graphics performance in exchange for faster SSDs?

PCIe 4.0 cannot reach 7.4GBs

PCle 5.0 SSD bulk is the most perfect option?

PCIe 4.0 was implanting on the 11th-generation Core platform for the first time by Intel. However, the PCIe Payload Size can only support up to 256 bytes. Therefore, the reading speed of the SSD is no more than 7.1GB/s, and cannot reach 7.4GB/s like the AMD platform. The 12th generation Core Intel struggled to achieve PCIe 5.0 earlier than AMD, but unfortunately, the technology is still quite raw. The PCIe 5.0 on the 12th generation Core is still only theoretically available, its actual state is not perfect. So, there is still room for the 13th generation Core to improve.

Ryzen 7000 cannot support PCIe 5.0

If you want to fully explore the advantages of PCIe 5.0, the 12th generation Core platform is obviously not enough. Also, AMD is not enough too, and the upcoming Ryzen 6000 and the next-generation Ryzen 7000 cannot support PCIe 5.0. According to Storage Geeks, the market may not widely PCIe 5.0 solid-state drives for at least a year. So, if you want to buy PCIe 4.0 SSDs, don’t worry, your choice will not be out of fashion in short time.
