SD card (Secure Digital Memory Card) is one kind of memory card in bulk based on the technology of semiconductor flash memory, which was jointly developed by Panasonic, Toshiba and SanDisk in 1999. In 2000, these companies established of the SDA (Secure Digital Association), and its strong backgrounds attracted a large number of manufacturers, including IBM, Microsoft, Motorola, NEC, Samsung and so on. Driven by these leading manufacturers, bulk SD card has become the most widely used memory card in consumer digital devices at present.
SD card was originally developed on the basis of MMC (Multimedia Card) card and can be compatible with MMC card, but the data transmission speed of SD card is faster. In addition, the function of CPRM (Content protection for Recordable Media) is specially added for authorized access to data in the card in order to achieve content protection.
The size of SD card is 32mm x 24mm x 2.1mm, which is equivalent to the size of a stamp. A memory card of this size is suitable for digital camera and DV camera, but it is too large for thin mobile phones whose size records are constantly refreshed. In order to meet the requirement of shrinking the size of memory cards for digital products, SD cards gradually evolved into two specifications: Mini SD and Micro SD in bulk.

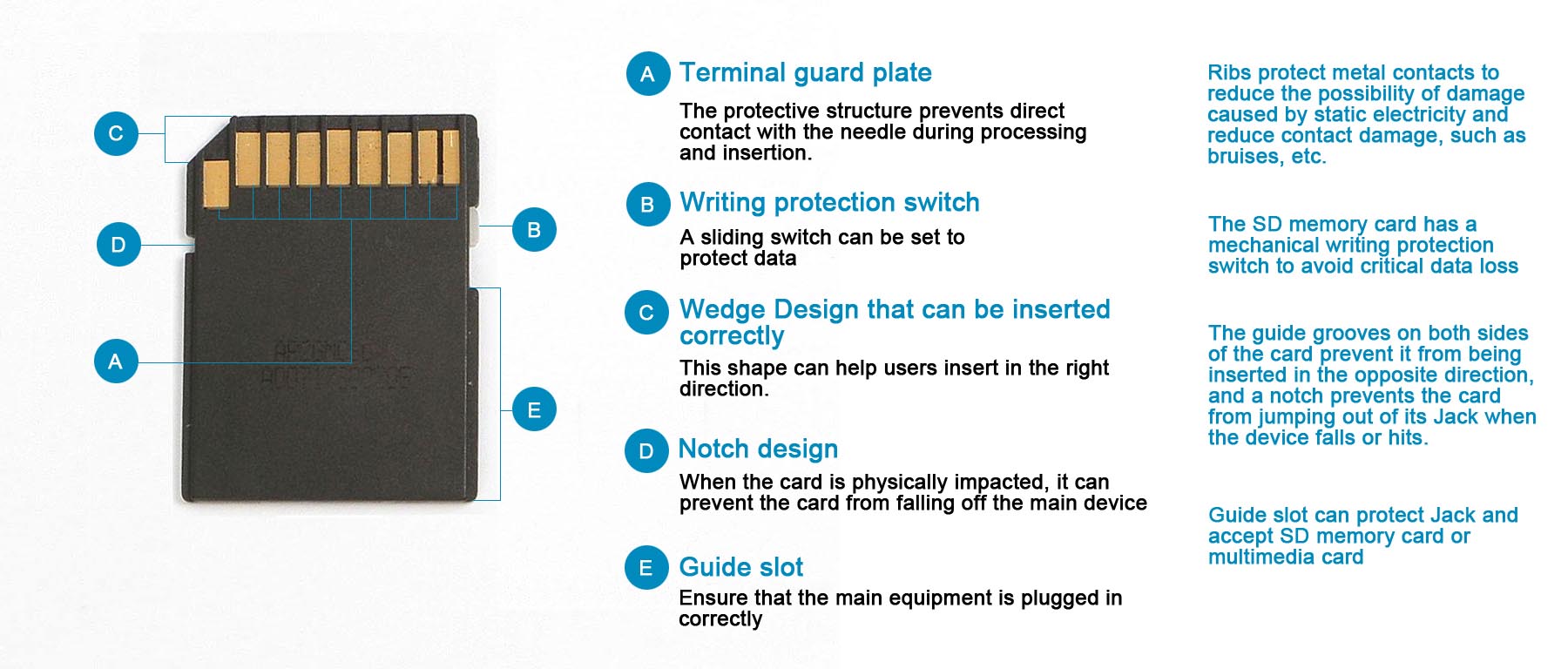

There are nine pins on the back of SD card, including four data cables, which support two data transmission widths of 1bit and 4bit. The maximum clock frequency is 25 MHZ, so the theoretical maximum data transmission speed is 12.5 MB/S, and the operating voltage is 2.7-3.6 V.
As the name implies, Mini SD card is smaller in shape than standard SD card, only about 40% of standard SD card in size. Although the size and the interface shape of Mini SD card are different from those of the original SD card, the interface specification remains unchanged to ensure the compatibility. If a Mini SD card is inserted into a specific adapter card, it can be used as a standard SD card.
Trans Flash（Micro SD）
Trans flash cards, also known as T-Flash cards, TF or T cards, were first introduced by SanDisk. The size of TF card is only 11mm x 15mm x 1mm, which is only 1/4 of standard SD card in size and smaller than Mini SD card.
Similarly, TF cards are compatible with standard SD cards. When inserting a TF card into a specific adapter card, it can be used as a standard SD card or a Mini SD card.
In July 2005, the SDA Association officially issued the Micro SD standard, which is fully compatible with TransFlash cards. TransFlash cards and Micro SD cards in the market can be used indiscriminately. TransFlash is the nickname of this card and it takes the academic name of Micro SD after development, but we still prefer to call it TransFlash!
The emergence of small SD cards such as Mini SD cards and Micro SD cards greatly expands the application range of SD cards, which makes it possible for SD cards to be used in some small mobile phones. On the other hand, the functions of Mini SD cards and Micro SD cards are compatible with those of SD cards. As long as they are inserted into specific adapter cards, they can be used as standard SD cards. In this way, Mini SD and Micro SD can be used in digital devices using standard SD cards, which accelerate the popularization of Mini SD and Micro SD in the market.

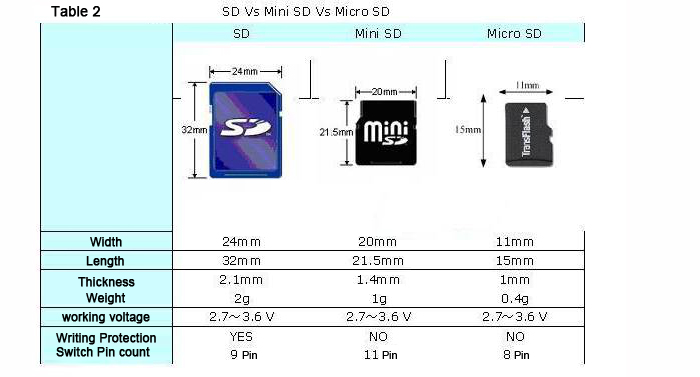

MicroSD has one less VSS pins than standard SD
MiniSD has two more NC pins than standard SD
SD cards that follow the 2. 0 specification are called SDHC (SD high capacity) cards. The shape of SDHC card is the same as that of SD card, but the file system is changed from FAT to FAT32, and the maximum capacity of SDHC card is increasing to 32GB. In addition to SDHC cards, there is Mini SDHC cards and Micro SDHC cards.
At present, SD, Mini SD and Micro SD cards in the market all follow SD Spec Ver1.0 or 1.1 specifications, and their maximum possible capacity is only 2GB. In 2006, the SDA Association released the SD Spec Ver2.0 specification, which allowed SD cards to have a capacity of up to 4GB or higher.
SDHC cards are no longer compatible with standard SD cards. The devices conforming to SD Spec Ver2.0 can support SDHC cards, which are marked with SDHC logo. And the devices that support SDHC cards can be downward compatible with standard SD cards.
In order to present the best performance of SDHC cards and ensure the compatibility, SDA Association defines three speed levels for SDHC cards: class 4, class 6 and class 10; and its implication is that the bearable writing speed for each grade is at least 4MB/s, 6MB/s, 10MB/s. Speed level is defined by data writing speed, which is slower than data reading speed.
SDHC cards with the capacity bigger than 2GB must have SDHC symbols and mark the symbols of speed grade.
SDIO (Input/Output) is an IO interface specification. At present, the main function of SDIO is to expand the peripheral operation for devices with SD card slots. The SDIO card is one IO peripheral; it is not the Memory product. The shape of SDIO card is the same as SD card and can be directly inserted into the SD card slot.
